Industrial grade30%、18%,POLYSTYRENE SULFONIC ACID CAS 28210-41-5

What is polystyrene sulfonic acid? How does it work? What are its industrial applications?

1. What is Polystyrene sulfonic acid? How does it work?

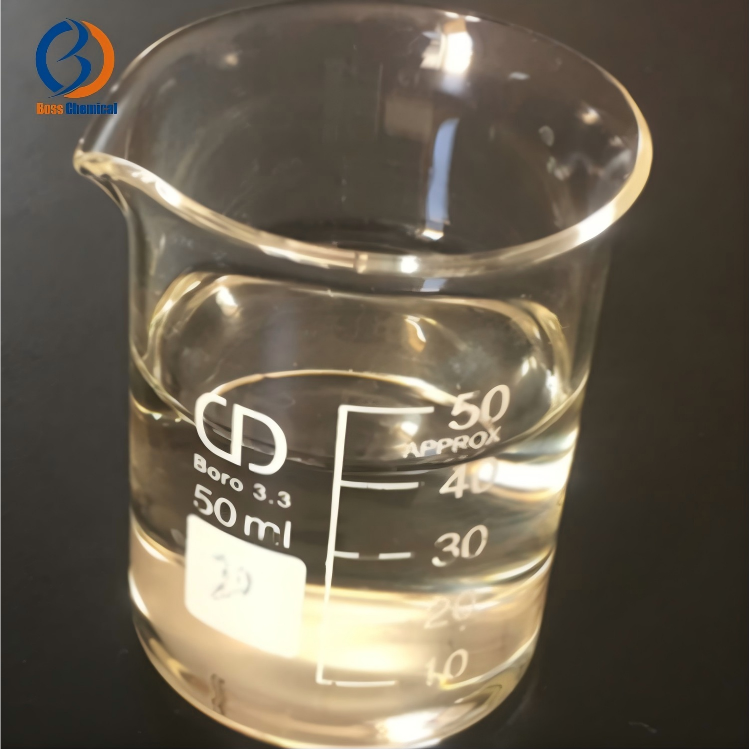

Polystyrene sulfonic acid, also known as polystyrene sulfonic acid, is a strongly acidic polyelectrolyte with sulfonic acid groups on the benzene rings of the polystyrene backbone. Its molecular formula is (C8H8O3S)n, and its CAS number is 28210-41-5. It is an amber-colored, transparent, viscous liquid, readily soluble in water. The sulfonic acid groups completely ionize in water, making the aqueous solution strongly acidic. Simultaneously, the molecular chain carries a high density of negative charges—allowing it to function as a dopant and dispersant stabilizer in conductive polymers (such as in the PEDOT:PSS system), as well as a functional material for ion exchange, scale inhibition and dispersion, and solid acid catalysis. It is widely used in electronic materials, water treatment, textiles, and catalysis industries.

Basic information : Chinese name: Polystyrene sulfonic acid; English name: Polystyrene sulfonic acid (abbreviation PSSA); CAS number: 28210-41-5; Molecular formula: (C8H8O3S)n (repeating unit: p-styrene sulfonic acid); Appearance: amber-colored transparent viscous liquid or light yellow solid; Easily soluble in water, ethanol, methanol, lower alcohols and ethylene glycol; Aqueous solution is strongly acidic (pH approximately 1.5 at 25℃); Density: approximately 1.11 g/cm³; Synonyms: Poly(4-styrene sulfonic acid), PSSA, styrene sulfonic acid polymer, etc.

Structurally , polystyrene sulfonic acid is a polyelectrolyte with sulfonic acid groups on the benzene rings after styrene polymerization: the main chain is a polystyrene carbon chain, with each benzene ring carrying a sulfonic acid group (-SO3H, usually located in the para position), and the structural unit is -CH2-CH(C6H4SO3H)-. The sulfonic acid group is composed of a sulfur-oxygen double bond and a hydroxyl group, which completely ionizes in water to produce hydrogen ions and sulfonate anions—the combination of a strong acid group and a high density of negative charges is the structural basis for its role in ion exchange, doping, and dispersion.

Physically , polystyrene sulfonic acid is an amber-colored, transparent, viscous liquid (aqueous solution) or a light yellow solid; it is miscible with water, ethanol, methanol, lower alcohols, and ethylene glycol; its aqueous solution is strongly acidic (pH approximately 1.5); its density is approximately 1.11 g/cm³; its melting point is approximately 1°C; the viscosity of its aqueous solution increases with molecular weight and concentration; it needs to be stored in a sealed, dry place at room temperature.

Chemically , polystyrene sulfonic acid is a strongly acidic polyelectrolyte: the sulfonic acid group is completely ionized in water, resulting in a low pH in the aqueous solution; it neutralizes with alkali to form polystyrene sulfonates (such as sodium salts); the molecular chain carries a high density of negative charges, which can interact electrostatically with conductive polymer cations and metal cations; it has good thermal stability; and it is chemically stable and not easily oxidized or decomposed.

Why does polystyrene sulfonic acid play these roles in industries such as conductive polymers, ion exchange, water treatment, textiles, and catalysis? Its mechanism of action mainly includes the following:

The mechanism of strong acid polyelectrolytes : the sulfonic acid groups are completely ionized and release protons, and the molecular chains carry a high density of negative charges—this is the basis for functions such as proton conduction, acid catalysis and charge interaction.

Charge compensation doping mechanism : Sulfonate anions pair with the cations of conductive polymers such as PEDOT, stabilizing their doped state and imparting water dispersibility—the basis of the PEDOT:PSS conductive system.

Ion exchange mechanism : The hydrogen ions of sulfonic acid groups can undergo reversible exchange with cations such as sodium and calcium in the solution—the basis of strong acid cation exchange resins and soft water treatment.

Dispersion stabilization mechanism : Polyelectrolyte chains with high density of negative charges adsorb onto the surface of particles, dyes and scale crystals, and electrostatic repulsion prevents aggregation and sedimentation—the basis of scale inhibitors, dispersants and printing and dyeing auxiliaries.

Proton conduction mechanism : Sulfonic acid groups aggregate to form hydrophilic proton channels, which efficiently conduct protons in a hydrated state—the basis for the application of proton exchange membranes.

II. All uses of industrial-grade Polystyrene sulfonic acid

1. Field of conductive polymers and electronic materials

PEDOT:PSS dopant and dispersant stabilizer

It acts as a dopant and dispersant stabilizer for PEDOT (polyethylene dioxythiophene), forming the PEDOT:PSS conductive polymer system.

Corresponding products: PEDOT:PSS conductive dispersion, conductive polymer system, etc.

Organic electronic devices

Electrodes and hole transport layers used in devices such as organic solar cells, organic light-emitting diodes, and organic field-effect transistors.

Corresponding products: organic solar cells, OLED devices, organic transistors, etc.

Transparent conductive and antistatic coating

Used in transparent conductive coatings and antistatic coatings to improve surface conductivity.

Corresponding products: transparent conductive film, antistatic coating, touch film, etc.

2. Ion exchange and membrane materials

Strong acid cation exchange resin

The sulfonic acid groups endow the resin with strong acidic cation exchange capacity, which is used for water softening, desalination and separation purification.

Corresponding products: strong acid cation exchange resin, softening resin, mixed bed resin, etc.

Proton exchange membrane

It is used as a proton exchange membrane material in electrochemical devices such as fuel cells.

Corresponding products: proton exchange membranes, fuel cell membrane electrodes, etc.

3. Water treatment and scale inhibition fields

Scale inhibitors and dispersants

It is used as a scale inhibitor and dispersant in water treatment, specifically in boiler water and circulating cooling water, to prevent calcium scale deposition.

Corresponding products: scale inhibitors, circulating water treatment agents, boiler water treatment agents, etc.

4. Textile printing and dyeing industry

Dispersing leveling agent

It is used as a dispersant and leveling agent in textile printing and dyeing to improve dye dispersion and dyeing uniformity.

Corresponding products: dyeing and printing auxiliaries, dispersants, leveling agents, etc.

5. Catalysis and Functional Materials

solid acid catalysts

It is used as a sulfonic acid type solid acid catalyst for acid-catalyzed reactions such as esterification, hydration, and alkylation.

Corresponding products: solid acid catalysts, sulfonic acid resin catalysts, etc.

Antistatic agent

It is used as an antistatic agent in antistatic packaging, coatings and plastic products to reduce surface resistance.

Corresponding products: antistatic agents, antistatic packaging, antistatic coatings, etc.

III . Summary

Polystyrene sulfonic acid (CAS 28210-41-5) is a strongly acidic polyelectrolyte with sulfonic acid groups on the benzene ring of the polystyrene backbone. These sulfonic acid groups completely ionize in water, and the molecular chain carries a high density of negative charges. This allows it to function as a dopant and dispersant stabilizer in conductive polymers (a key role behind PEDOT:PSS conductive materials), as well as an ion exchange resin, scale inhibitor, solid acid catalyst, and proton exchange membrane material. It's hidden in the conductive layer of mobile phone touchscreens, OLED screen components, water purifier resin filters, and anti-static packaging of electronic components—quietly supporting the electronics, water treatment, textile, and catalysis industries with its unique identity as a strong acid polyelectrolyte. Understanding its sulfonic acid group structure and polyelectrolyte properties helps explain why it has become a key polymer with multiple functions in modern functional materials.
