Industrial Grade 97% High-Purity Grade 99% Electronic Grade 99.99% Strontium Carbonate CAS 1633-05-2

1. What is Strontium carbonate? How does it work?

Strontium carbonate (chemical formula SrCO3) is the most important industrial compound of strontium, a white or gray powder. It is the source of the red flame in fireworks, a raw material for speaker magnets, a flux in ceramic tile glazes, and a component in the formulation of MLCC capacitors for mobile phones. From the red glow of festival fireworks to the magnetism of speakers, from electronic components in mobile phones to anti-rust coatings for bridges, strontium carbonate is used in many fields, including fireworks, magnetic materials, ceramics, electronics, metallurgy, and chemicals.

Basic identification information: Molecular formula SrCO3, molecular weight 147.63, CAS number 1633-05-2, EC number 216-643-7; It exists naturally as strontianite, and is industrially produced from celestite (SrSO4) through the black lime method or direct conversion method.

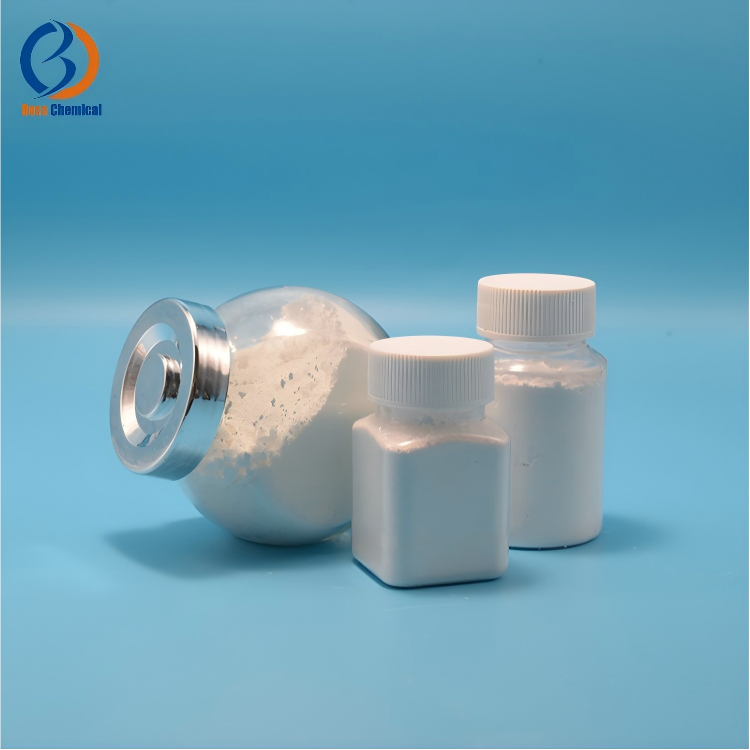

Physically, strontium carbonate is a white or gray powder, odorless and tasteless; density 3.5 g/cm³; melting point 1494℃ (decomposes into SrO and CO2); almost insoluble in water (approximately 3.4 mg/100 mL, Ksp 5.6 × 10⁻¹⁰), soluble in dilute acids (releasing CO2) and ammonium salt solutions, with significantly increased solubility in saturated CO2 water; refractive index 1.518, orthorhombic crystal system.

Chemically, strontium carbonate is a weak base (weak Lewis base): it reacts with various acids to form corresponding strontium salts and release CO2 (with nitric acid to form strontium nitrate, with hydrochloric acid to form strontium chloride). This property of "carbonate neutralization + strontium introduction" makes it a fundamental raw material for the preparation of almost all strontium compounds. It also reacts with high-temperature solid-state materials such as titanium dioxide to form strontium titanate. The strontium ion radius (approximately 0.118 nm) is between that of calcium (0.100 nm) and barium (0.135 nm), and this "intermediate" size allows for precise adjustment of the lattice and Curie temperature in barium titanate-based ceramics. Storage requires protection from moisture and direct mixing with strong acids.

From the perspective of its mechanism of action, strontium carbonate plays an irreplaceable role through "strontium ion flame color + carbonate neutralization + strontium ion lattice substitution". The mechanism of action in different applications is as follows:

1.   Flame test mechanism (red flame)

Strontium ions emit characteristic red spectral lines (approximately 606-636 nm) during electron transitions in high-temperature flames. Strontium carbonate is non-hygroscopic, low in cost, and can neutralize acidic components in pyrotechnic systems, making it the ideal strontium source for red fireworks.

2.   Ferrite magnetic mechanism (hexagonal lattice formation)

Strontium carbonate reacts with iron oxide in a solid-state reaction at high temperature to form strontium ferrite SrFe12O19. Strontium ions enter the hexagonal ferrite lattice, giving the material high coercivity and high remanence, enabling loudspeaker and motor magnets to obtain stable permanent magnetic properties.

3.   Fluxing mechanism of glass and ceramics (network modification + X-ray absorption)

Strontium ions have radii between those of calcium and barium. In glass and glazes, they act as network modifiers to lower melting temperature and adjust refractive index. Their high atomic number enables glass to absorb and shield radiation such as X-rays. In glazes, they can also adjust the color of metal oxides.

4.   Mechanism of electronic ceramics (perovskite dielectric and Curie temperature regulation)

Strontium carbonate reacts with titanium dioxide to form perovskite-type strontium titanate (SrTiO3). Its high dielectric constant, tunable dielectric-temperature characteristics, and piezoelectricity make it a fundamental material for PTC thermistors, piezoelectric ceramics, and microwave dielectric ceramics. Strontium ions have a smaller radius than barium, and their partial substitution of barium in the barium titanate lattice can shift the Curie temperature to a lower temperature and flatten the dielectric-temperature curve, making it a core method for designing temperature-stable dielectric formulations for MLCCs.

5.   Metallurgical inoculation/modification mechanism (graphite and eutectic silicon refinement)

Strontium is an active element in cast iron inoculants and aluminum-silicon alloy modifiers: trace amounts of strontium can change the precipitation morphology of graphite in cast iron (promoting type A graphite), refine the eutectic silicon in aluminum-silicon alloys, and significantly improve the mechanical properties of cast iron and aluminum alloys.

6.   Mechanism of salt formation by acid reaction (key to strontium salt preparation)

Strontium carbonate, as a weak Lewis base, can react quantitatively with various acids to form corresponding strontium salts (strontium nitrate, strontium chloride, strontium hydroxide, strontium chromate, etc.), making it a key link in the strontium chemical industry chain from minerals to strontium salt products.

In summary, strontium carbonate is the "cornerstone of the strontium industry." With its strontium ion flame color, lattice substitution, and carbonate neutralization, it is used in a wide range of fields, from fireworks red to loudspeaker magnets, from ceramic tile glazes to electronic ceramics, and from cast iron inoculation to superconducting materials, spanning fireworks, magnetic materials, ceramics, electronics, metallurgy, and chemicals.

II. What are all the uses of Strontium carbonate?

Strontium carbonate has applications in fireworks, magnetic materials, electronic ceramics, electronic components, semiconductors, electronic displays, ceramic glazes, metallurgy, strontium chemicals, luminescent materials, superconductors, rust-preventive pigments, sugar refining, and optical glass. The following sections elaborate on each downstream end product/application area, explaining the application area, corresponding product, and why it is effective for that purpose:

1.   Red coloring agent for fireworks and signal flames (core application in the fireworks industry).

Application areas: Fireworks industry and signaling equipment. Corresponding products: Red fireworks/confetti shells, ground fireworks, signal flares, road flares, stage fireworks, etc. Why it works for this purpose: Strontium ions emit characteristic red spectral lines in flames. Strontium carbonate is the non-hygroscopic, lowest-cost strontium salt that can neutralize acidic components in fireworks systems. Compared to strontium nitrate and other strontium salts, it is more stable and easier to store and transport, making it the classic and preferred strontium source for red fireworks.

2.   Strontium ferrite permanent magnet materials (core application in the magnetic materials industry)

Application Areas: Magnetic materials and permanent magnet devices. Corresponding Products: Strontium ferrite (SrFe12O19) permanent magnet powder, speaker/earphone magnets, toy and door magnet motor magnets, DC motor magnets, magnetic separator magnets, etc. Why it works for this purpose: Strontium carbonate and iron oxide undergo a high-temperature solid-state reaction to form hexagonal ferrite SrFe12O19. Strontium ions enter the crystal lattice, imparting high coercivity and high remanence. Ferrite magnets are low-cost, high-temperature resistant, and resistant to demagnetization, making them widely used in consumer electronics and home appliances such as speakers, motors, and toys.

3.   Strontium titanate raw material for electronic ceramics (core application in the electronics industry)

Application Areas: Electronic components and electronic ceramics. Corresponding Products: Strontium titanate (SrTiO3) ceramic powder, PTC thermistors (air conditioners/refrigerators/automotive temperature control and heating), piezoelectric ceramics, microwave dielectric ceramics, grain boundary layer capacitors, thyristor buffer capacitor ceramics, etc. Why it is suitable for this application: Strontium carbonate reacts with titanium dioxide to form perovskite-type strontium titanate. Its high dielectric constant, dielectric-temperature tunable properties, and piezoelectricity make it a fundamental material for electronic ceramics. Electronic-grade high-purity strontium sources ensure consistent dielectric properties and high device yield.

4.   MLCC (Multilayer Ceramic Capacitor) Formulation Adjustment (Core Application in Electronic Components)

Application areas: Chip components and consumer electronics. Corresponding products: X7R/X5R temperature-stable MLCC multilayer ceramic capacitors, barium titanate-based dielectric formulations, surface-mount capacitors for mobile phones/computers/automotive electronics, etc. Why it works for this purpose: Strontium ions have a smaller radius than barium. By partially replacing barium in the barium titanate lattice, the Curie temperature can be lowered and the dielectric-temperature curve flattened, resulting in a temperature-stable dielectric. This is a core method for adjusting temperature characteristics in MLCC dielectric formulations. Electronic-grade purity ensures consistent capacitance and reliability of the capacitors.

5.   High-dielectric thin films and storage device media (semiconductor and memory fields)

Application areas: Semiconductor manufacturing and memory device fields. Corresponding products: SrTiO3 high-dielectric thin films, DRAM capacitor dielectric layers, semiconductor process precursors, high-k gate dielectric research materials, etc. Why it is suitable for this application: SrTiO3 thin films possess high dielectric constant, low leakage current, and good temperature stability, making them suitable as capacitor dielectrics for memory devices. Electronic-grade strontium carbonate provides a high-purity strontium source, and the extremely low impurities ensure the electrical performance of the thin film, making it an important material for advanced memory and high-k dielectric research.

6.   CRT glass shells and radiation protection glass (electronic display and protective glass industry)

Application areas: Electronic display and X-ray protection glass. Corresponding products: Cathode ray tube (CRT) TV/monitor shell glass, X-ray protection glass, iridescent glass, etc. Why it works for this purpose: Strontium has a high atomic number, and when added to a glass network, it can effectively absorb X-ray radiation generated by cathode ray tubes, while also adjusting the glass's refractive index and melting properties. It was once a key component of TV shell glass (its use has decreased with the phasing out of CRTs, but it is still used in X-ray protection glass).

7.   Ceramic glaze flux (ceramic industry)

Application areas: Architectural ceramics and daily-use ceramics. Corresponding products: Ceramic tile glazes, bathroom fixture glazes, art ceramic glazes, strontium-based lead-free glazes (lead substitutes), etc. Why it works for this purpose: Strontium carbonate acts as a flux in glazes, lowering the firing temperature, improving glaze gloss and thermal expansion matching. Its properties are similar to barium carbonate but with lower toxicity. It can replace lead glazes to achieve environmentally friendly lead-free formulations, while also adjusting the color of metal oxides. It is a commonly used glaze component in architectural and daily-use ceramics.

8.   Additives for steel and aluminum alloy metallurgy (metallurgical industry)

Application Areas: Cast iron and aluminum alloy metallurgy. Corresponding Products: Strontium-based cast iron inoculants (strontium-ferrosilicon inoculants), ductile iron inoculation treatment, strontium modifiers for aluminum-silicon alloys (Al-Sr master alloys), aluminum alloy wheel/engine block castings, etc. Why it works for this purpose: Trace amounts of strontium promote the uniform precipitation of graphite in cast iron in the A-type morphology, refine the eutectic silicon in aluminum-silicon alloys, and improve its morphology, significantly enhancing the strength and toughness of cast iron and the casting performance of aluminum alloys. It is a key element in cast iron inoculation and aluminum-silicon alloy modification treatment.

9.   Raw materials for the preparation of strontium salts and strontium compounds (Strontium Chemical Industry)

Application areas: Strontium chemical and fine chemical industries. Corresponding products: Strontium nitrate (red fireworks/signal flares), strontium chloride, strontium hydroxide, strontium chromate (rust-preventive pigment), strontium titanate, strontium oxide (SrO), high-purity strontium salts, etc. Why it is suitable for this application: Strontium carbonate, as a weak Lewis base, can react quantitatively with various acids to produce corresponding strontium salts. It is a pivotal raw material in the strontium chemical industry chain; almost all industrial strontium salts are produced through the reaction of strontium carbonate with acids.

10. Phosphors and luminescent materials (core applications in the field of optoelectronic materials)

Application areas: Luminescent materials and optoelectronics. Corresponding products: SrS:Eu blue/green phosphors, electroluminescent materials, long-afterglow phosphors, luminescent coatings, X-ray intensifying screen phosphors, LED phosphor systems, etc. Why it works for this purpose: Strontium carbonate, after calcination to strontium oxide, reacts with sulfur and rare earth dopants (europium, etc.) to generate SrS-based phosphors. The strontium ion lattice provides a suitable crystal field for the rare earth luminescent centers, achieving blue-green emission and long afterglow characteristics. High-purity strontium sources ensure luminous efficiency and color purity.

11. Precursors for high-temperature superconducting materials (in the field of superconducting materials)

Application areas: Superconducting materials and cutting-edge electronics. Corresponding products: BSCCO (Bi-Sr-Ca-Cu-O) high-temperature superconducting precursors, superconducting tapes and wires, superconducting thin films, MRI superconducting magnet related materials, etc. Why it is suitable for this application: Strontium carbonate is the strontium source for the bismuth-strontium-calcium-copper-oxygen (BSCCO) system of high-temperature superconductors. Strontium ions participate in constructing the layered structure of the superconducting phase. High-purity strontium sources ensure the purity of the superconducting phase, critical temperature, and critical current density, making it one of the key raw materials for preparing high-temperature superconducting tapes.

12. Strontium chromate anti-rust pigment (coating industry)

Application areas: Coatings and corrosion protection industry. Corresponding products: Strontium chromate (SrCrO4) anti-rust pigment, metal primer, anti-corrosion coating for steel structures, anti-rust coating for aerospace and shipbuilding, etc. Why it works for this purpose: Strontium carbonate reacts with chromic acid to form strontium chromate. Its chromate ions have corrosion-inhibiting and passivating effects, providing long-lasting anti-rust protection for metal substrates. It is an important anti-rust pigment for primers on difficult-to-protect substrates such as aluminum and galvanized steel.

13. Sugar refining and purification aids (sugar industry)

Application areas: Sugar and food processing. Corresponding products: Refining aids for beet sugar/sucrose, syrup decolorization and impurity removal, pharmaceutical refining processes, etc. Why it works for this purpose: Strontium carbonate can form insoluble precipitates with impurities (sulfate, organic impurities) in sugar solutions, used for refining and purifying sugar to remove impurities. It is a traditional clarification and purification aid in sugar refining processes (food-grade strontium carbonate must comply with food regulatory limits).

14. High-refractive-index optical glass (optics and optoelectronics fields)

Application areas: Optical glass and optoelectronic instruments. Corresponding products: High-refractive-index, low-dispersion optical glass, camera lenses and telescope lenses, optical prisms and filters, special optical components, etc. Why it works for this purpose: Strontium ions have a medium radius and high electronic polarizability. Introducing them into a glass network can increase the refractive index and adjust dispersion. High-purity strontium sources avoid coloring ions and bubble defects, ensuring the transmittance and imaging quality of the optical glass.

In summary, strontium carbonate (SrCO3, CAS 1633-05-2) is the "cornerstone of the strontium industry." Leveraging its properties of "strontium ion flame coloring, lattice substitution, and carbonate neutralization," it has mature applications across fourteen major sectors, including fireworks red colorants, strontium ferrite permanent magnets, strontium titanate electronic ceramics, MLCC formulation adjustment, high-dielectric thin films and storage media, electronic displays and protective glass, ceramic glazes, steel and aluminum alloy metallurgy, strontium salt chemicals, phosphors and luminescent materials, high-temperature superconductors, rust-preventive pigments, sugar refining, and optical glass. Among these, strontium ferrites, electronic ceramics, and MLCCs represent the largest current consumption areas, with fireworks red being its most classic application.
